MPPT vs PWM: Best Solar Charge Controllers for 2026

Solar charge controller selection decides how much energy you actually keep from your panels. Pick wrong, and you lose 10 to 30 percent of your power before it even reaches the battery.

You are not choosing between brands first. You are choosing between MPPT and PWM, and that decision controls everything else.

What a Solar Charge Controller Actually Does

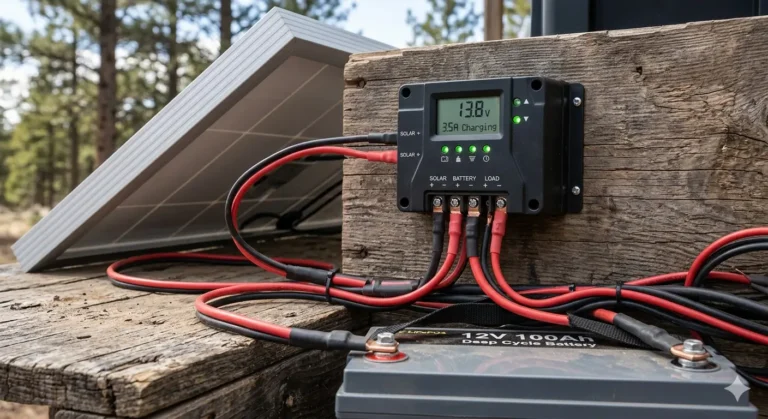

A solar charge controller regulates voltage and current from your panels into your battery.

Without it:

• battery overcharges
• voltage spikes damage electronics
• lifespan drops fast

Every off-grid setup needs one. No exceptions.

Types of Solar Charge Controller Systems

You have two real options:

• PWM solar charge controller
• MPPT solar charge controller

They do the same job in very different ways.

PWM Solar Charge Controller Explained

PWM stands for Pulse Width Modulation.

It connects the solar panel directly to the battery and reduces voltage to match battery levels.

How PWM Works

• panel voltage gets pulled down to battery voltage
• excess voltage becomes wasted energy
• simple circuitry controls charge stages

If your panel outputs 18V and your battery is 12V, PWM forces that 18V down to 12V.

You lose that extra voltage as heat.

Real Efficiency Numbers

• 70 percent to 80 percent efficiency typical
• drops further in cold or partial shading

When PWM Makes Sense

Use PWM solar charge controller if:

• small systems under 200W
• tight budget
• short cable runs
• panel voltage matches battery

Anything beyond that starts hurting performance.

MPPT Solar Charge Controller Explained

MPPT stands for Maximum Power Point Tracking.

It constantly adjusts voltage and current to extract maximum power from the panel.

How MPPT Works

• converts excess voltage into usable current
• tracks optimal power point in real time
• adapts to sunlight and temperature changes

If your panel outputs 18V, MPPT converts that extra voltage into more amps instead of wasting it.

Real Efficiency Numbers

• 90 percent to 98 percent efficiency
• performs better in cold weather
• handles shading better

This is why MPPT dominates larger systems.

MPPT vs PWM Solar Charge Controller Efficiency

Here is the difference in real numbers:

• PWM: 70 to 80 percent
• MPPT: 90 to 98 percent

On a 200W system:

• PWM delivers around 140W to 160W
• MPPT delivers around 180W to 196W

That gap increases as system size grows.

Voltage Advantage of MPPT Solar Charge Controller

MPPT lets you run higher voltage panels.

Example:

• 24V or 36V panels into 12V battery

PWM cannot do this efficiently.

Higher voltage means:

• less cable loss
• longer cable runs
• better performance in low light

This matters in van life and off-grid setups.

Best Solar Charge Controller Options for 2026

Now let’s get into actual models worth using.

Comparison Table

Renogy Wanderer Li 30A PWM Solar Charge Controller

This is a classic entry-level solar charge controller.

Key points:

• 30A capacity
• supports lithium and lead-acid
• 4-stage charging

Bulk charging handles about 80 percent of battery fill fast. Then boost and float stages stabilize voltage.

You get:

• overcharge protection
• short circuit protection
• temperature compensation

Compact design makes it fit RV cabinets easily.

Real use case:

• small RV setup
• 100W to 200W panels

Anything bigger ,efficiency loss starts to show.

Victron SmartSolar MPPT 75/15 Solar Charge Controller

This is where MPPT starts making sense.

Specs:

• 15A output
• 75V max PV input
• Bluetooth built-in

It tracks power point aggressively.

Even with partial shade , it adjusts and keeps output stable.

You can monitor everything through the app:

• voltage
• current
• battery state

This level of control changes how you manage your system.

Victron SmartSolar MPPT 100/50 Solar Charge Controller

This one targets serious setups.

Specs:

• 50A output
• 100V input
• scalable systems

You can connect multiple controllers in sync.

That matters if you expand later.

This unit handles:

• van life builds
• off-grid cabins
• high watt solar arrays

Performance difference vs PWM becomes obvious here.

Renogy Wanderer 10A PWM Solar Charge Controller

Small, cheap, functional.

• 10A capacity
• LCD display
• basic load control

Works for:

• 50W to 100W panels
• simple lighting systems

Low self-consumption under 10mA helps preserve battery.

Still, same limitation applies:

voltage mismatch wastes energy.

Depvko 30A PWM Solar Charge Controller

Budget option. No advanced features.

• 30A rating
• dual USB ports
• LCD display

Limitations:

• lead-acid only
• no lithium support
• lower build quality

Use only if:

• minimal budget
• non-critical system

Solar Charge Controller Sizing Basics

Do not guess here.

Use this formula:

Panel Watts ÷ Battery Voltage = Current

Example:

• 200W panel
• 12V battery

→ 200 ÷ 12 = 16.6A

Add 25 percent safety margin:

→ 20A controller minimum

Always oversize slightly.

Common Solar Charge Controller Mistakes

Undersizing

Controller overheats or limits output.

Ignoring Voltage Limits

Panels exceed controller input rating.

This damages the unit.

Choosing PWM for Large Systems

You lose too much energy.

Cost savings disappear quickly.

When PWM Solar Charge Controller Still Makes Sense

Not everything needs MPPT.

PWM works fine if:

• system under 150W
• panels match battery voltage
• short-term or temporary setup

It is simple and reliable.

When MPPT Solar Charge Controller Is Worth It

Use MPPT if:

• system above 200W
• long cable runs
• mixed weather conditions
• need maximum efficiency

This is where it pays for itself.

Real-World Setup Scenarios With Solar Charge Controller

Most people read specs and assume perfect conditions. That’s not how systems behave outside.

Scenario 1: Camping Setup With 100W Panel

• 100W panel
• 12V battery
• short cable run

Using PWM solar charge controller:

• real output around 70W to 80W

Using MPPT solar charge controller:

• real output around 85W to 95W

Difference looks small. Over a full day, that’s 50Wh to 100Wh lost.

That’s a phone, lights, or extra runtime gone.

Scenario 2: Van Life With 300W Solar

• 3 × 100W panels
• 12V battery system
• longer cable runs

PWM result:

• voltage drop increases
• efficientcy drops under 70 percent

MPPT result:

• stable voltage conversion
• better low-light performance

Here the difference becomes huge. You can lose 100W+ daily with PWM.

Scenario 3: Off-Grid Cabin With 600W System

At this scale, PWM makes no sense.

• MPPT pulls maximum power
• handles higher voltage arrays
• reduces cable losses

You gain:

• faster charging
• stable battery health
• predictable output

Solar Charge Controller and Battery Type Compatibility

Not all controllers handle all batteries equally.

Lithium Batteries

Require precise charging:

• stable voltage
• no overcharge
• temperature management

MPPT solar charge controller handles this better.

Some PWM units support lithium, but control is basic.

AGM and Gel Batteries

Both controller types work.

PWM is acceptable for:

• small setups
• low daily usage

MPPT improves efficiency but not critical unless system grows.

Flooded Lead-Acid

Both types work.

PWM often used due to lower cost.

Still, MPPT extends lifespan through better charge control.

Temperature Impact on Solar Charge Controller Performance

Temperature changes output significantly.

Cold Conditions

• panels produce higher voltage
• MPPT captures extra energy
• PWM wastes it

Hot Conditions

• panel voltage drops
• MPPT adjusts dynamically
• PWM loses efficiency

This is why MPPT consistently outperforms across seasons.

Cable Loss and Why It Matters

Long cable runs kill performance.

PWM suffers more because:

• it cannot compensate voltage loss

MPPT helps by:

• allowing higher voltage input
• reducing current in cables

Less current means:

• less heat
• less loss

This becomes critical in RV and van builds.

Monitoring and Smart Features in Solar Charge Controller

Basic PWM units:

• LED indicators
• limited data

Advanced MPPT units:

• Bluetooth monitoring
• real-time data
• historical performance

With Victron controllers, you see:

• daily energy production
• voltage trends
• system errors

This lets you optimize your setup instead of guessing.

How to Choose the Right Solar Charge Controller

Use this checklist.

Step 1: Calculate Total Panel Wattage

Add all panel ratings.

Step 2: Identify Battery Voltage

12V, 24V, or higher.

Step 3: Decide Controller Type

• under 150W → PWM
• above 200W → MPPT

Step 4: Add Safety Margin

Increase amperage by 20 to 30 percent.

Step 5: Check Expansion Plans

If you plan to add panels, go MPPT now.

Cost vs Efficiency Breakdown

PWM is cheaper upfront.

MPPT costs more but saves energy daily.

Example:

• PWM saves $50 upfront
• loses 20 percent efficiency

Over time:

• lost energy exceeds cost difference

This becomes obvious in daily-use systems.

Solar Charge Controller for Starlink and Off-Grid Internet

This is where efficiency matters more than price.

Starlink setups require:

• stable power
• consistent charging

Using PWM:

• energy loss reduces runtime
• battery drains faster

Using MPPT:

• more usable energy
• longer uptime

If your setup powers internet, do not cut corners here.
